Force Max 210B Displacement and Speed Calibration System

Overview

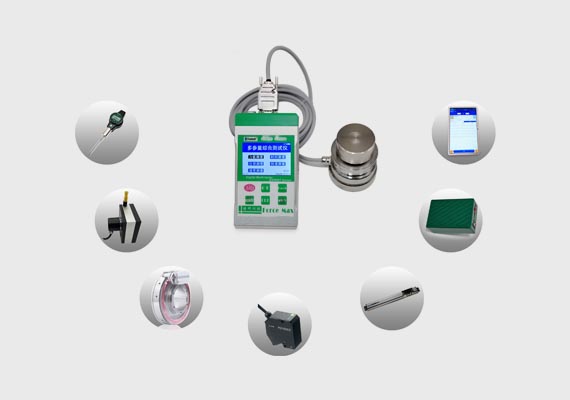

A portable system for calibrating crosshead displacement and travel speed on electronic and hydraulic universal testing machines. It can work with force, grating displacement, draw-wire displacement, dial-gauge and speed sensors for synchronized multi-parameter measurement.

Applications

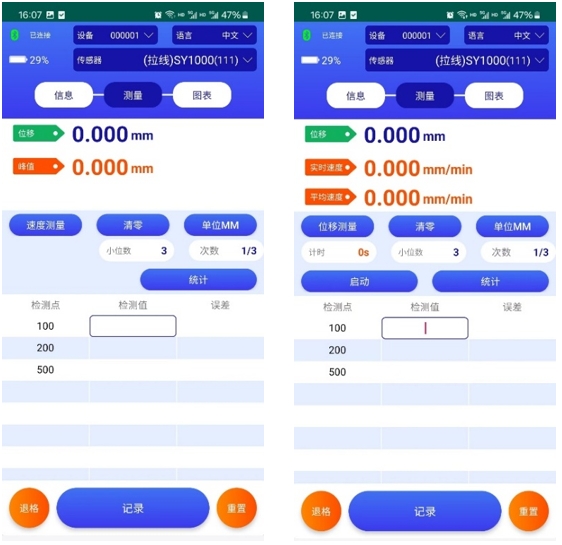

Synchronized force, displacement, speed, time, rotational-speed and multi-channel acquisition.

Selection and technical basis

• Product: Force Max 210B Displacement and Speed Calibration System
• Category: Multi-parameter Measurement
• Referenced standards: JJG 475-2008, JJG139

Measurement range, accuracy class, sensors, fixtures, software and supplied accessories depend on the selected configuration. Confirm the final specification against the technical agreement, manual and delivery documents.
